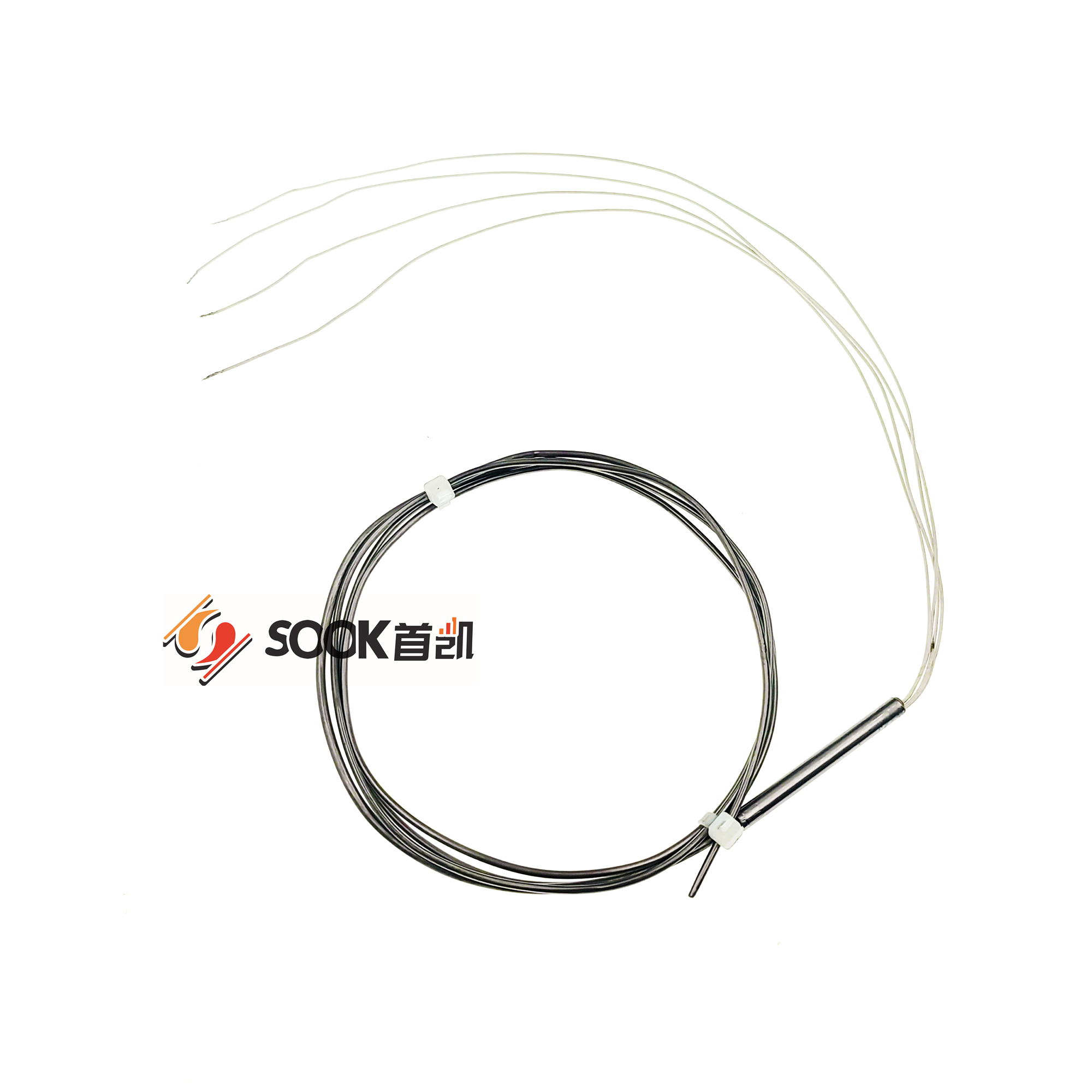

Aerospace Heater
| Aerospace Heater （High-temperature resistant variable cross-section armored aerospace heater） | |
| Product Model | SK-KJ2-Φ2.1x1200+Φ2.4x200-400W/115V/Inconel 600 |
| Structural feature | Variable cross-section |
| Armoring material | Inconel 600 |
| Main heating section | |
| Dia. | Φ2.1mm |
| Length | 1200mm |
| Secondary heating section | |
| Dia. | Φ2.4mm |
| Length | 300mm |
| Connection | |
| Dia. | Φ5mm |
| Length | 50mm |
| Lead wire | |
| Length | 300mm |
| Normal temperature insulation | 5MΩ/250VDC |
| High-temperature insulation | 100KΩ/multimeter |
| Core wires q'ty | 4 |
| Working power | 400W |
| Working voltage | 115V |
The product can be custom-made.
Armored heaters
The working principle of generating heat through the conductor using an electric current and transmitting heat to the heated body by means of radiation, convection and conduction. The product is composed of alloy thermoelectric wire, insulating material, metal casing and three solid body.
It has a long service life, high mechanical strength, corrosion resistance, high thermal efficiency, uniform heating, safety and sanitation, convenient installation and maintenance, etc. In addition, it also has the outer protection pipe with small diameter, long length, can be arbitrarily bent into various shapes and other characteristics.
This kind of product can directly heat solid, liquid and gas in 0~900 ℃, widely used in petrochemical industry, mechanical electronics, aviation, aerospace, nuclear energy, national defense research, household appliances and other national economy.
