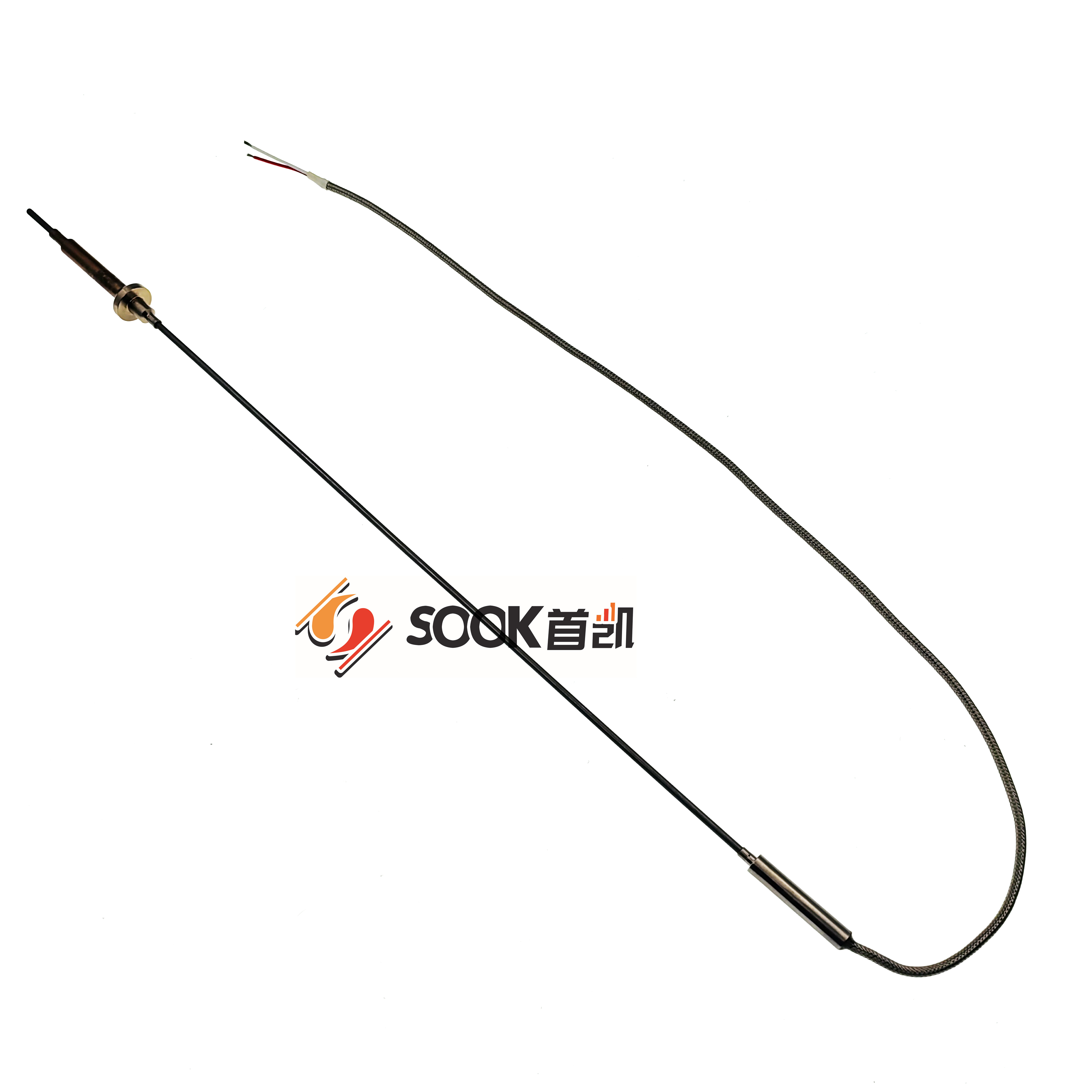

Temperature sensor ( K-type armored thermocouple)

Temperature sensor (K-type armored thermocouple)
Product item No.		SKT-2367
Thermocouple type		K
Measuring temperature range		0~800℃
Normal using temperature		450℃
Accuracy		GOST 6616-94  class 1, that is: 0~375℃: ±0.004|t|,  375~800℃: ±2.5℃
Vibration level		GOST R52931-2008 G1, that is: frequency: 10~2000Hz, amplitude: 0.35mm, acceleration: 49m/s2
Normal working (operating) pressure		0.4Mpa
25℃±10℃, and relative humidity of 30~80%, the insulation resistance between the lead and the shell >10MΩ
Thermal inertia index is not more than 5s
Protection grade		IP55, according to GOST 14254-2015
Service life at normal operating temperature		not less than 8000h
The product can be custom-made
