Stainless steel signal cable
2024-11-27 11:12:55
| Stainless steel signal cable | ||||
| Product Model | SKKPLS-4*0.22mm | |||

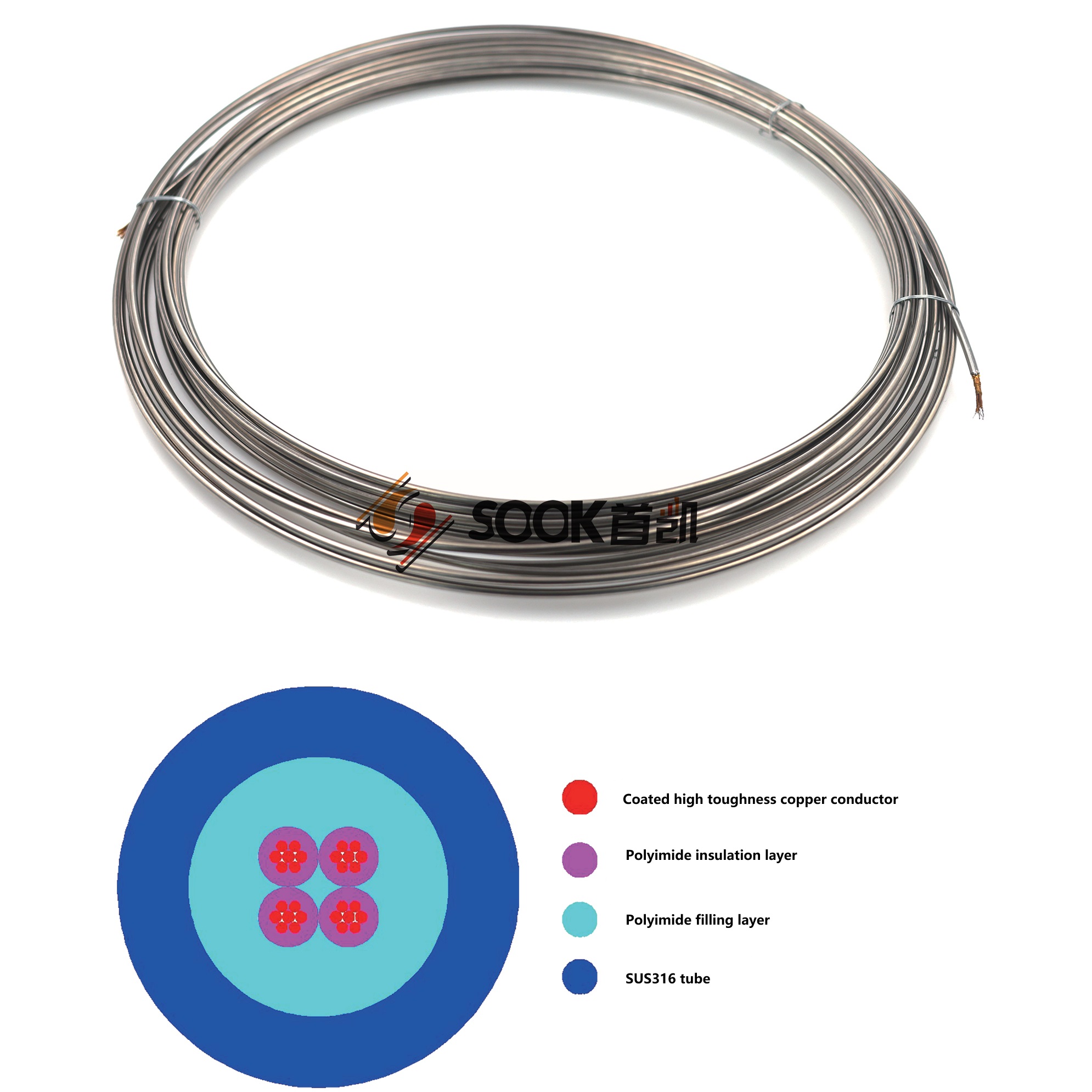

| Structure | ||||
| Coated high toughness copper conductor | 7 x 0.20mm | |||
| Polyimide insulation layer | 0.2mm | |||
| SUS316 tube thickness | 0.4mm | |||
| Physical Properties | ||||
| Cable dia. | 4.0 ± 0.05mm | |||
| Cable temperature resistance | -50 ~ +380℃ | |||
| Mechanical Properties | ||||
| Cable breaking force | 9KN | |||
| Cable's minimum bending radius | 200mm | |||
| Electrical Performance | ||||
| Cable withstand voltage | 300VDC | |||
| Insulation resistance of cable at 20 ℃ | ≥ 500MΩ.km | |||
| DC resistance of cable at 20 ℃ | ≤ 86Ω/km | |||
| Cable capacitance | ≤ 0.17μF/km | |||
The product can be custom-made, core wire q'ty can be 2, 4, 6, 8, and the Model Numbers are SKKPLS-2x0.22mm, SKKPLS-4x0.22mm, SKKPLS-6x0.22mm, SKKPLS-8x0.22mm accordingly
